Artwork Specifications

Production-ready artwork, without the guesswork

Use this guide to check your file format, bleed, image quality, colours, fonts and template setup before sending artwork to Evan Evans.

Download Artwork Templates Need Design Help?

Important: Evan Evans considers artwork production-ready only when it meets the requirements below and no further in-house adjustments are required. If you are unsure, please contact our team before approving production.

Bleed

Include the correct bleed so backgrounds and images trim cleanly to the finished edge.

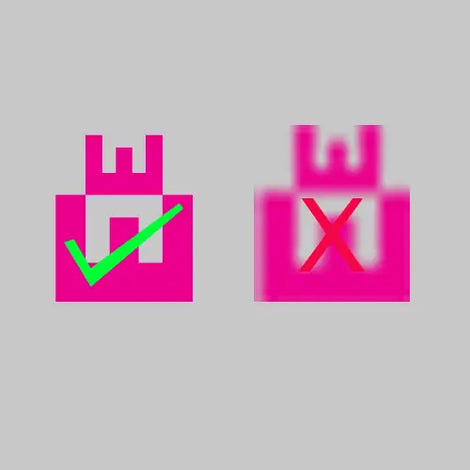

Image Resolution

Use high-quality artwork and images suitable for the final print size.

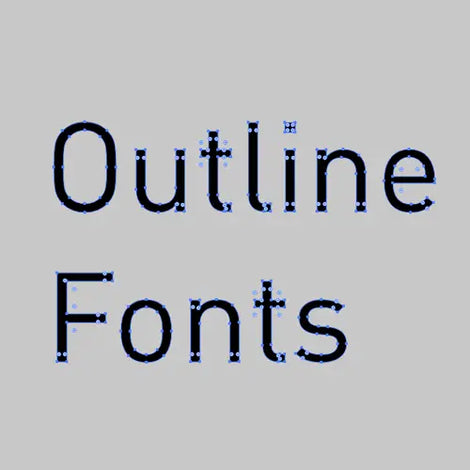

Outline Fonts

Convert all text to outlines to avoid missing fonts or unexpected text changes.

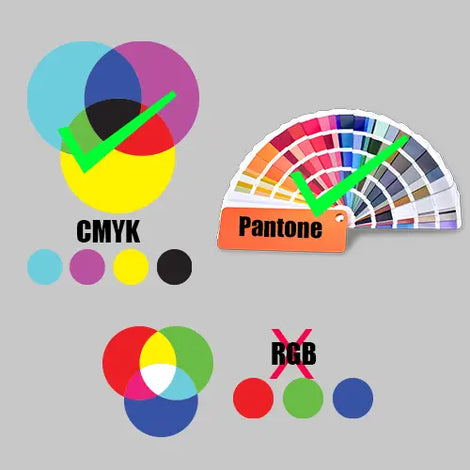

Colour Setup

Supply artwork in CMYK or Pantone Solid Coated colours where applicable.

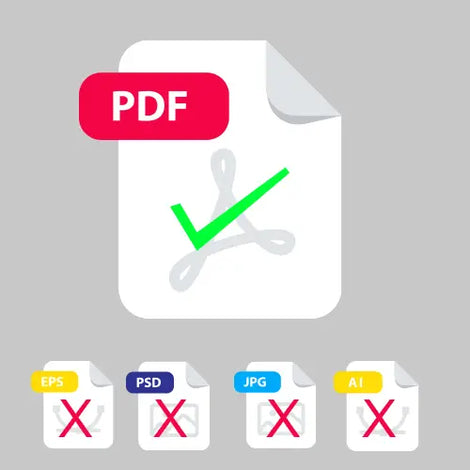

File Formats

Print-ready PDF is preferred. AI, EPS, PSD and TIFF may also be accepted.

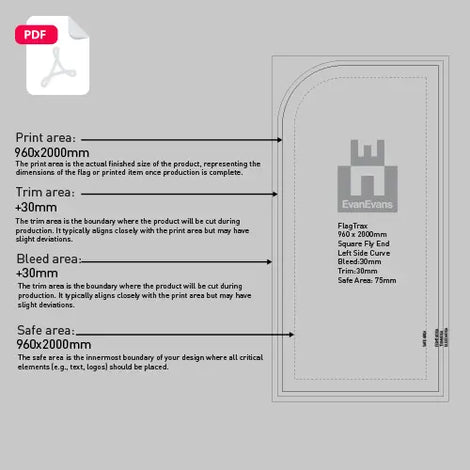

Templates

Use the correct template when your artwork needs cut lines, guides or finishing layers.

Contact Evan Evans for artwork assistance

Need Help?

Not sure if your artwork is ready? Contact our team before production starts.

Quick artwork checklist

Before uploading your files, please check the essentials below.

✓Supply print-ready files as PDF where possible.

✓Outline all fonts before sending final artwork.

✓Embed all images or include linked image files.

✓Include the correct bleed for your product or template.

✓Use CMYK or Pantone Solid Coated colours, not RGB.

✓Supply raster images at the correct final output resolution.

✓Keep cut lines, kiss cuts and dielines on separate layers.

✓Contact us first for white ink or specialty print setup.

File setup requirements

These are the core requirements for supplied artwork. If your artwork does not meet these specs, additional file preparation may be required before production.

Preferred file formats

Print-ready PDF is preferred.
AI, EPS, PSD and TIFF may also be accepted.
Please embed all images or supply linked image files.

Bleed

Artwork must include bleed on all sides.
Use the bleed shown on the relevant product template.
For general large-format artwork, allow 30mm bleed unless advised otherwise.

Fonts

Convert all text to outlines.
This prevents font substitution and unexpected text changes.
Check spelling and final copy before submitting artwork.

Colour

Supply artwork in CMYK or spot colours where applicable.
Do not supply final artwork in RGB.
Use Pantone Solid Coated references for PMS colours.

Colour matching

Supply a colour-accurate proof when colour matching is important.
Clearly identify all Pantone colours with correct PMS numbers.
For critical colour work, ask us about a press proof.

Specialty inks

Contact production before supplying white ink artwork.
Specialty print layers may require specific file setup.
Do not guess layer names for white ink, cut lines or specialty finishes.

Image resolution guide

Large-format print does not always need to be built at full size. Use the guide below when preparing raster artwork.

Artwork scale	Resolution required	Best used for
100% finished size	75dpi	Full-size large-format artwork
25% finished size	300dpi	Quarter-size artwork setup
10% finished size	750dpi	One-tenth scale artwork setup

For online design uploads or smaller print files, high-resolution artwork is still important. Logos should ideally be supplied as vector artwork, especially for banners, flags, media walls and large signage.

Dielines and production layers

Dielines, cut paths and specialty finishing instructions must be supplied as separate layers within the file. Use our standard template where required so layer names match our production process.

Evan Evans artwork dieline layer setup example

Standard Illustrator dieline template

Use this template when your artwork requires cutting, routing, kiss cutting or other finishing layers. Keep guide layers separate and do not flatten production layers into the artwork.

Illustrator CC Template Illustrator CS6 Template Illustrator CS5 Template

When creating your own designs, use separate layers to define different cutting actions such as through cut, kiss cut, crease, drill holes or specialty finishing.

Popular artwork templates

Download artwork setup files for our most commonly ordered products. If the template you need is not listed here, please contact us and our team will help you with the correct setup file.

Custom FlagsLandscape flag templates

View Custom Flags product

900 x 450mm Landscape Flag 1370 x 685mm Landscape Flag 1800 x 900mm Landscape Flag 2300 x 1150mm Landscape Flag 2750 x 1380mm Landscape Flag 3200 x 1600mm Landscape Flag 3600 x 1800mm Landscape Flag

SEG Popup Fabric Display / Spider WallSmall, large and instruction files

View SEG Popup Fabric Display product

Small Front / Back 2260 x 2260mm Small Left / Right 370 x 2260mm Small Top 2240 x 370mm Large Front / Back 2995 x 2260mm Large Left / Right 370 x 2260mm Large Top 2975 x 370mm SEG Popup Display Instructions

Straightline Media WallSingle-sided, double-sided and instructions

View Straightline Media Wall product

Single-Sided 2450 x 2280mm Single-Sided 2920 x 2280mm Double-Sided 2450 x 2280mm Double-Sided 2920 x 2280mm Straightline Media Wall Instructions

EEZY WallPortable display stand instructions

View EEZY Wall product

EEZY Wall Instructions Great Wall Instructions

Pull Up BannersEconomy, Eclipse and Elite templates

View Pull Up Banners collection

Economy 850 x 1990mm Economy 1000 x 1990mm Eclipse 850 x 2150mm Eclipse 1000 x 2150mm Eclipse 1200 x 2150mm Elite 850 x 2200mm Elite 1000 x 2200mm Elite 1200 x 2200mm

Printed MarqueesWall and canopy templates

View Printed Marquees collection

3 x 3 Full Wall 6 x 3 Full Wall 3 x 3 Canopy Only 6 x 3 Canopy Only

A-Frames600 x 900mm and 900 x 1200mm inserts

View A-Frames collection

A-Frame 600 x 900mm A-Frame 900 x 1200mm

Eyeline BannerDouble-sided vinyl banner templates

View Eyeline Banner product

Left Template Right Template

FlagTraxProduct guide and full template set

View FlagTrax product

Product guide

FlagTrax Product Guide

960 x 2000mm

Square Cut - Right Side Curve Square Cut - Left Side Curve Small Curve - Right Side Curve Small Curve - Left Side Curve Medium Curve - Right Side Curve Medium Curve - Left Side Curve Large Curve - Right Side Curve Large Curve - Left Side Curve

960 x 3000mm

1110 x 3000mm

1110 x 3800mm

Feather FlagsAssembly guide and templates

View Feather Flags collection

Portable Flag Assembly Guide Small Feather Banner Template Small Feather 655 x 2000mm Double Medium Feather 705 x 3000mm Single Medium Feather 705 x 3000mm Double Large Feather 805 x 4000mm Single Large Feather 805 x 4000mm Double

Rectangle FlagsPortable rectangle flag templates

View Rectangle Flags collection

Portable Flag Assembly Guide Rectangle Flag Template

Teardrop FlagsSmall, medium and large templates

View Teardrop Flags collection

Portable Flag Assembly Guide Small Teardrop 750 x 1900mm Single Small Teardrop 750 x 1900mm Double Medium Teardrop 970 x 3000mm Single Medium Teardrop 970 x 3000mm Double Large Teardrop 1090 x 3880mm Single Large Teardrop 1090 x 3880mm Double

Can’t find the template you need? Contact Evan Evans and our team will help you with the correct artwork setup file.

Need help with artwork?

File preparation

If your supplied artwork requires adjustment before production, a file preparation fee may apply. Our team will contact you before proceeding if your file needs significant work.

Graphic design assistance

If you do not have finished artwork, our qualified designers can help create or correct your file. Design and artwork correction is charged at $125 per hour.

Press proofs

For colour-critical projects, we recommend a press proof on the specified material. This helps confirm colour, finish and final print expectations before full production.

Production responsibility

Evan Evans takes care when checking files, but the customer is responsible for the quality and accuracy of supplied artwork, including spelling, image quality and file setup.

Unsure if your file is print-ready?

Send your artwork through and our team can review the setup before production. For white ink, dielines, colour-critical jobs or unusual materials, contact us before uploading.
